Hydraulic Automatic Cutting Cable Tray Forming Machine For Steel Structural Framings

Place of Origin:

Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: GY300, GY180, GY200

Hydraulic Automatic Cutting Cab

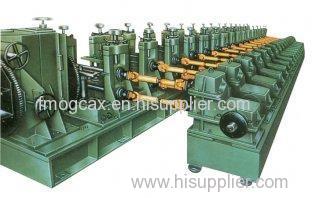

Hydraulic Automatic Cutting Cable Tray Forming Machine For Steel Structural Framings

Specifications:

No.	main parameter of roll forming machine
1	Thickness	2-4mm
2	Width	≤550mm
3	Dimensions	2.132.5m
4	Forming steps	12-16 steps
5	Power	55Kw
6	Productivity	35m/min
7	Diameter of the roller	Φ80mm
8	Weight	About6T
9	Material of the cutting plate	Cr12
10	Processing precision	Within 1.00mm
11	control system	PLC
12	cutting	Hydraulic automatic
13	Voltage	380V 50Hz 3phases
14	Suitable to process	Cold steel plate /Hot rolled (black) steel

Description:

This equipment is a specialized machine set for the production of profile steel. It is designed and produced according to the requirements of our customers.

The first step of the operation is to feed the raw material onto the feeding rack and then feed the material manually into the main forming machine after uncoiling and straightening.

Secondly, the raw materials will be deformed and changed into geometry by operating the main mould on the main forming machine together with some special auxiliary forming devices to eliminate the internal force of straightening devices. The product will be cut at a fixed length by the cutter so as to guarantee the straightness of the products.

Finally, the finished products will be moved away from the receiving platform.

Applications:

It is used for steel structural framings.

Competitive Advantage:

1.Automatic roll forming machine

2.High quality
3.Factory direct price
4.Design by COPRA@ software from Germany

5.On time delivery

6.Good service
