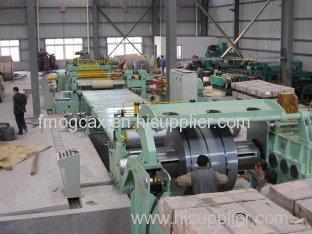

High Precision Cut to Length Lines for Silicon Steel 0.23 - 0.5mm with 15 Slitting Strips

High Precision Cut to Length Lines for Silicon Steel 0.23 - 0.5mm with 15 Slitting Strips

Description:

Cut-to-length Machine for Silicon Steel(0.23-0.5mm), width 1000/1250mm, high precision, high speed slitting

Applications:

It used for cutting the plate.

Specifications:

1. Material of processible coil: apply for carbon steel plateδb≤320Mpa, δb≤460Mpa;

2. Thickness of coil: δ=1.5—4mm;

3. Width of coil: 600—1600mm;

4. Precision of slitting: width tolerance: ±0.1mm;

5. Slitting speed: 0—50m/min(adjustable);

6. Loading capacity of uncoiler machine: 30T;

7. Coil I.D: Φ508Φ610Φ760mm;

8. Coil O.D: ≤2100mm;

9. Main shaft diameter for slitting: 240mm; material 40Cr;

10. Slitting blade: 260×350×15; 32 pieces;

11. Slitting strips: 15 strips

12. Material of slitting blade: 6CrW2Si;

13. Hardness of blade: HRC58°—60°;

14. Recoiler I.D: 610mm;

15. Power: 415V /three-phase /50Hz;

16. The main components & damageable component in electronic equipments is accordance with GB stipulation;

17. Line elevation: 800mm

Competitive Advantage:

1.Automatic roll forming machine

2.High quality
3.Factory direct price
4.Design by COPRA@ software from Germany

5.On time delivery

6.Good service
